We are Hydrotech Engineering a fastest growing manufacturers and supplier of hydraulic cylinders. Our Hydraulic products abide by industry standard and follow regulations.

All hydraulic cylinders and parts are manufactured with the sole purpose to provide effective service with low maintenance and a promise to deliver high productivity. We are well established and popular organization consisting technicians an eye for detaiC with the years of experience we have created a customer base who trust us. And that has made us a company with an excellent track record for best customer satisfaction.

Never ever we have compromised the quality and service we provide to our customer; we believe in customer satisfaction and providing prompt service with competent pricing is our primary aim. Our able team is obliged to guide and assist you, and they are available at your disposal to serve you as well as impart knowledge about the product and suggest you the best ideas and market trends.

Material Specification

Material grade - HT52
Piston Rod - Carbon Steel ENG / c45
End Caps - Mild Steel
Tia Rod - Carbon Steel with Rolled Threds
Seals - PTFE / NBR / Viton depending upon application.
Rod seal with gland - CI / PV
Piston - CI

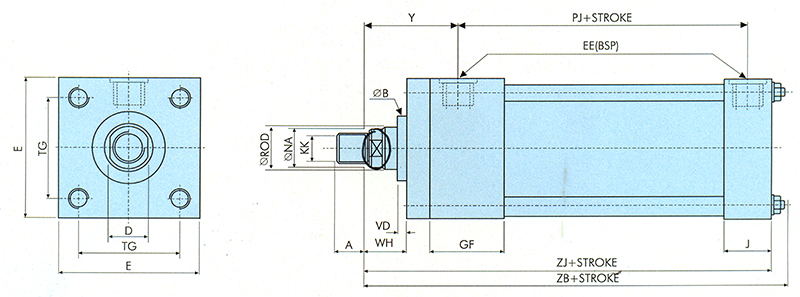

Bore	Rod mm		A		B		D		E	EE	GE	KK		NA		TG	WH	VD	Y	Stroke
Bore	Rod mm		A		B		D		E	EE	GE	KK		NA		TG	WH	VD	Y	PJ	ZB	ZI
25	12	18	14	18	24	30	10	15	40	1/4"	40	M10x1.25	M14x1.5	11	17	28.3	25	6.0	50	53	121	114
32	14	22	16	22	26	34	12	19	45	1/4"	40	M12x1.25	M16x1.5	13	21	33.2	35	12.0	60	56	137	128
40	18	28	18	28	30	42	15	22	63	3/8"	45	M14x1.5	M20x1.5	17	26	41.7	35	6.0 12.0	62	73	166	153
50	28	36	28	36	42	50	22	30	75	1/2"	45	M20x1.5	M27x2	26	34	52.3	41	6.0 9.0	67	74	176	159
63	36	45	36	45	50	60	30	41	90	1/2"	45	M27x2	M33x2	34	43	64.3	48	9.0 13.0	71	80	185	168
80	45	56	45	56	60	72	41	50	115	3/4"	50	M33x2	M42x2	43	54	82.7	51	9.0 9.0	77	93	212	190
100	56	70	56	63	72	88	50	60	130	3/4"	50	M42x2	M48x2	54	68	96.9	57	7.0 10.0	82	101	225	203
125	70	90	63	85	88	108	60	80	165	1"	58	M48x2	M64x3	68	88	125.9	57	10.0 10.0	86	117	260	232
160	90	110	85	95	108	133	80	100	205	1"	58	M64x2	M80x3	88	108	154.9	57	7.0 7.0	86	130	279	245
200	110	140	95	112	133	163	100	128	245	1.1/4"	76	M80x2	M100x3	108	138	190.2	57	7.0 7.0	98	165	336	299

Flange & Side Lugs Mounting

Trunnion Mountings

Extended Tie Rod Mountings

Pivot Mountings

Circular Flange Mountings

Mounting Types For Series-HTE
